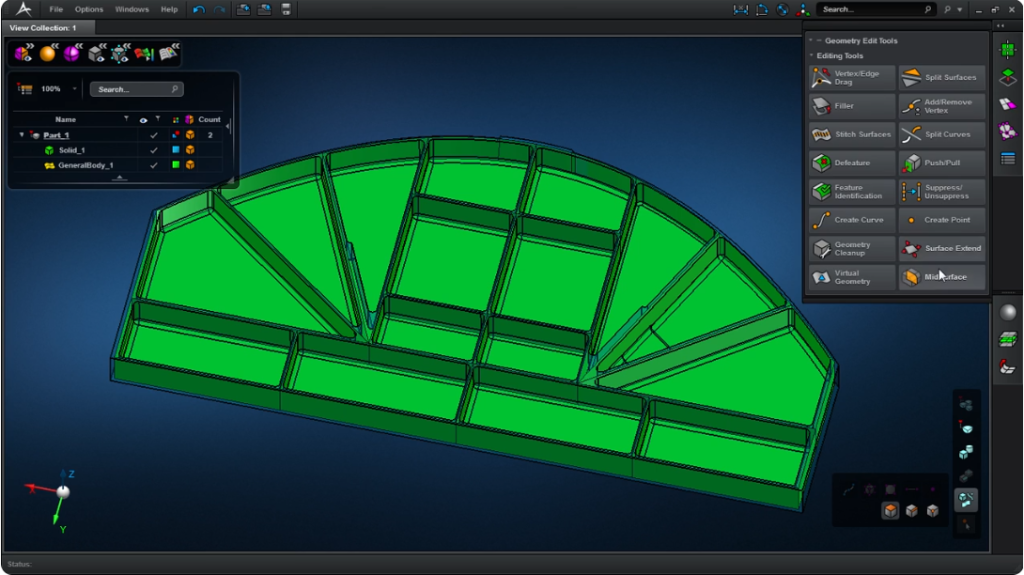

Download Product Sheet MSC Apex Modeler is a CAE specific direct modeling and CAD-and-Mesh solution that streamlines CAD clean-up, mesh creation, and attributes setting workflow. The solution features sophisticated and interactive tools that are easy to use and easy to learn…..
Smart tools: MSC Apex features a complete set of direct modeling tools to make geometry clean-up and idealization steps in an extremely fast and efficient manner. Simply select the entities of interest and push/pull or drag to implement any modifications. Such tools allow users to clean up geometry without any prerequisite experience and can reduce the number of user operations by a factor of 10.
Product workflows: MSC Apex has also been architected with smart FEA/CAE workflows in mind. A representative example is the smart mid-surfacing capabilities that enable the fast convergence of 3D FEA models to 2D models. Users can easily achieve 10x productivity gains in a typical CAD-to-analysis-ready FEA workflow by employing the workflows provided by MSC Apex.
Underlying technologies: MSC Apex incorporates a generative framework to enable full associativity between the geometry and analysis data. Once the ‘upstream’ object has modifications, the change will be synchronized to ‘downstream’ objects automatically, including mesh, attributes, and even simulation results. This Direct-modeling is unique in the CAE industry and provides tremendous user experience benefits.
Easy to use, easy to learn: MSC Apex is designed to have multi-purpose tools to make the application easy to use. It also features numerous learning aids such as tutorials, video-based documentation, workflow, and at-mouse instructions, which promote single-day productivity
